Compressor Delay Timer Relay Module

The ICS KB Series Compressor Time Delay Module protects the compressor from short-cycling of the control signal. The timer will insure a turn-on delay time of 30 to 300 seconds from when the control signal was set low.
ICS KB Series Compressor Delay Timer
  • Standard model operates on 24VAC
  • Other voltage options available
  • Custom timing available
  • Form A contacts, 15A resistive
  • Clamp screw terminals
  • Terminals accept 22ga to 12ga wire
Specifications

Adjustable Time Delay: 30 to 300 seconds.

Delay Adjustment: Trimmer adjustment, also available with fixed delay.

Timing Accuracy: ±1% @ 25ºC, ±5% @ -20ºC to +55ºC.

Input Voltage Range: 85% to 110% of rated voltage.

Temperature Range: -20ºC to +55ºC operating, -40ºC to +85ºC storage.

Contact Rating: SPST Contacts 15A @ 240VAC (resistive), 15A @ 28VDC (resistive).

Options: Custom voltage and timing available.

Download Spec Sheet Here

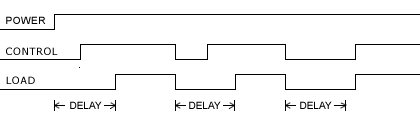

compressor lockout timer waveform

KB Compressor Timer Waveform.

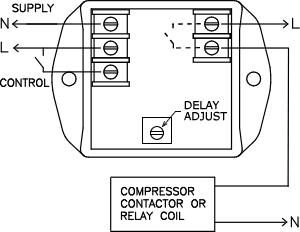

compressor delay module wiring diagram

KB Compressor Timer Relay Wiring Diagram.

compressor delay module dimensions

KB Compressor Timer Relay Dimensions (in Inches).
