Instrumentaion and Control Systems

Industrial Time Delay Products

Time Delay in a Small Package

The ICS KM Series Fixed-Time Delay Microtimer is designed to provide standard time delay actions, operate on commonly availabe voltages and to fit where space is limited. A generous selection of standard and custom time ranges and voltage options make this timer quite versatile. With output current capability up to 200mA, it is suitable for controlling many of today's readily available relays.
KM Series Microtimer includes off delay and on delay

• Low Cost, Quantity Pricing
• Simple 3-Wire Connections
• AC Models 24, 120 and 240 VAC
• DC Models 12, 24 and 36 VDC
• Compact Size:    Jump to Drawing
• Generous Selection of Timing Values
• Custom Timing Actions Offered


Features
 Available Functions: ON Delay, OFF Delay, INTERVAL, RECYCLE, ARBITRARY PULSE TRAIN (Code Transmitter) and SPECIAL Function.
 Timing available from 0.5 seconds to hours.
 Special timing and operating voltages available.
 Conformal Coating.
 Combines low-cost and miniature size.
 Adjustable time ranges available in the KA Adjustable Series.


Specifications
Range of Fixed Timing Values: 0.5 seconds to hours.
Timing Adjustment: Fixed - Set at factory.
Timing Accuracy: ±1% ±50msec at 25° C, ±5% ±50msec from -20° C to +55° C.
Repeatability: ±0.5% at constant ambient temperature.
Operating Voltage Range: 85% to 110% of rated voltage, 85% to 125% of rated voltage for 12VDC units.
Temperature Range: -20°C to +55°C operating, -40°C to +85°C storage.
Load Current Rating: 200mADC resistive or inductive (DC Models), 200mARMS resistive or inductive (AC Models).

Table 1. Part Number Selection
Timer Action:
(1) - ON Delay
(2) - OFF Delay
(3) - INTERVAL
(5) - RECYCLE (SYMMETRICAL)
(6) - RECYCLE (ASYMMETRICAL)
(7) - ARBITRARY

Timer Range:
Standard Timing:
(A) - 1 SEC.
(B) - 3 SEC.
(C) - 5 SEC.
(D) - 10 SEC.
(E) - 30 SEC.
(F) - 60 SEC.
(G) - 120 SEC.
(H) - 10 MIN.
(J) - 30-MIN.

Nonstandard Timing:
(0) - *Special

*Customer defined
Input Voltage:
(AC or DC)
Standard Voltage:
(1) 120 VAC
(2) 24 VAC
(4) 24 VDC
(5) 240 VAC
(8) 12 VDC
(9) 36 VDC
Nonstandard Voltage:

(0) - *Special
*Customer defined
Order Code Example:
KM = KM Series Microtimer
(2) = Timer Action = OFF Delay
(C) = Timer Range = 5 Seconds
(1) = Input Voltage = 120 VAC
off delay part number code
*Options: Fixed and Special Time ranges from .05 seconds to hours.

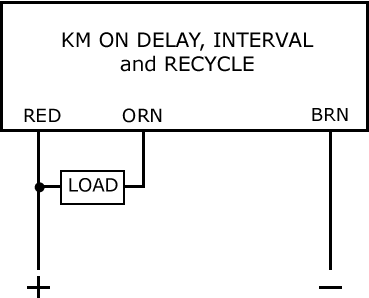

interval and recycle delay wiring drawing

Connections. Heatsink leads when soldering close to module.

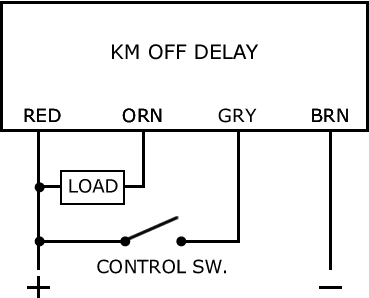

off delay wiring drawing

Connections. Switch and Load are customer-supplied.

timer dimensions

Note. Dimensions are in inches.
